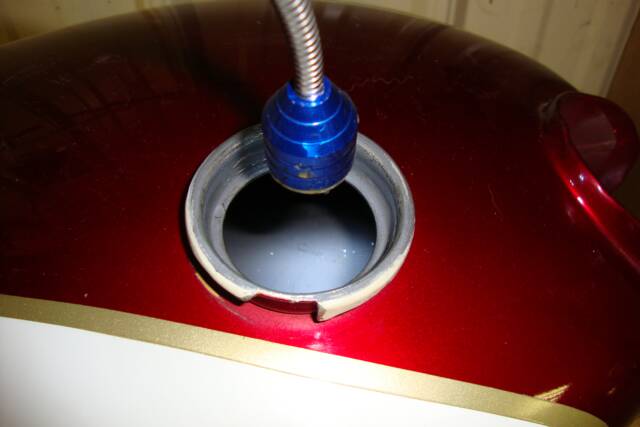

COMMENTS: This bike had sat for a rather long time and when it was parked, didn't run well, according to the owner. We proceeded to do the usual "get it running again" tasks including: clean rust out of & re-seal the gasoline tank, replace the fuel lines & oil hoses, repair a leak at the clutch primary, change all fluids & oil filter, new spark plugs, bleed & flush front & rear brakes including an upgrade to DOT 5 silicon brake fluid, new tires, new fork seals, new battery, and new drive chain. Plus the sad-sounding horn needed a tune up & the exhaust system needed to be installed. Once repairs were underway, it was apparent the bike also needed a new turn signal flasher & headlight switch. While going into the top end to review an oil leak near the push rod seals, Randy discovered what could have been a mechanical disaster had it not been caught & corrected - photos below. Cylinder #3 & piston had been badly scarred/damaged due to improperly installed or failure of the piston rings. Also, one "ear" of the circlip is missing. Randy re-sleeved the cylinder, added a new piston & rings, and reassembled the engine. Once gasoline was added to the tank, that's when the original petcocks decided to leak. We replaced them high quality UK made petcocks. Once test riding began, that's when the tachometer decided it needed some attention & a leak had to corrected. To make starting and operating the bike more user-friendly, we installed a Boyer electronic ignition. Now, Richard has a reliable, safe motorcycle that will be like no other in Elizabeth City, NC. This service required 24 hours of labor & 6 months to complete.
A note from our customer emailed April 4, 2010: Thanks to you and Randy for making this process as smooth as you did. This was my first time trying something like this and you made it a pleasure. I really appreciated all of the photo's and the video, it was good to be able to see the things you were talking about. Thanks for everything, and I'm sure you'll be hearing from me again.
3-minute video overview of this bike, including its first start-up in several years
3-minute video reviewing the work Randy performed & a quick lesson on how to start a

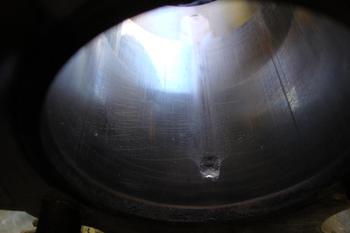

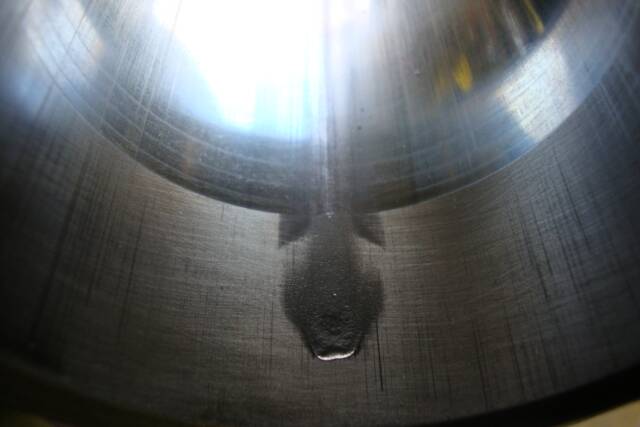

Damage to the #3 cylinder & piston. Note the missing part of the cir clip

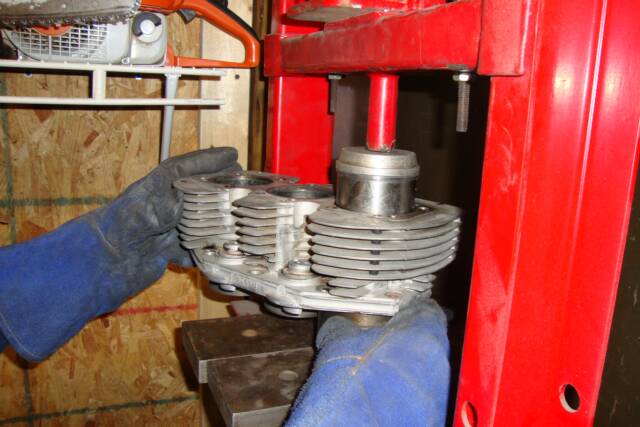

Pressing out the old & pressing in the new cylinder sleeve
